Protech 15" Fanless POS Terminal with Intel Atom Platform
 (Click picture to enlarge)
We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.
|
|
Protech 15" Fanless POS Terminal with Intel Atom Platform
SKU #: 637172
Model #:
PS6509
Product #:
PROTCH002
List Price: $1,122.00
Our Price:
$998.00
You Save:
$124.00
|

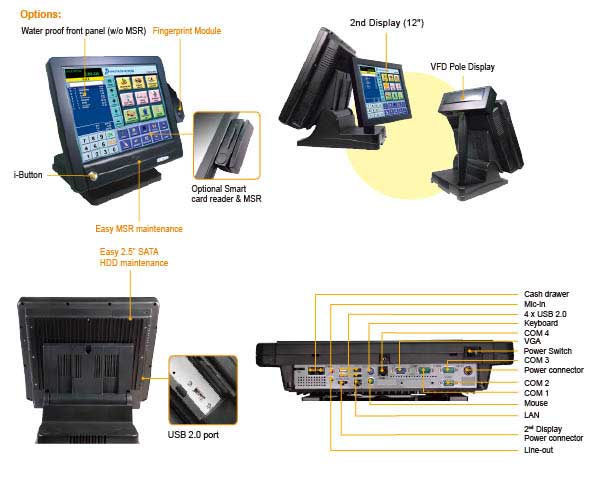

Alternate View
(Click picture to enlarge)
|
Description
Product Data Sheet
Description
w/ 15" ELO Touch Screen
Intel Atom N270 1.6GHz CPU
1GB DDR2 So-Dimm RAM
Slim 80GB HDD
MSR (ID TECH/ integrated credit card reader)
POS Ready 2009
 FEATURES
|
> |
Intel® Atom™ High Performance Platform |
|
> |
15" LCD display with touch screen |
|
> |
Flexible design for versatile applications |
|
> |
Fanless POS terminal |
|
> |
Optional i-Button for user identification & security control |
|
> |
Optional 802.11 b/g WLAN communication capability |
|
> |
Easy to be transferred to panel PC as long as removing the stand |
Specifications
|
>> Systems |
|
|
CPU Support |
Intel® Atom™ N270 1.6GHz |
|
EMC & Safety |
CE/ FCC/ cUL/ CB |
|
Memory |
1 x DDR2 SO-DIMM Slot, 512MB DDR2 SO-DIMM (up to 1GB) |
|
Core Logic |
Intel® 945GSE & ICH7M support FSB 533, DDRII 533 |
|
Network |
Giga Fast Ethernet (optional 802.11 b/g WLAN Mini-PCI module) |
|
Power Supply |
120W Power adapter |
|
System Weight |
11 kg |
|
Dimension (W x H x D) |
365 x 363 x 303 mm (14.37" x 14.29" x 11.92") |
|
O.S. Support |
Windows 7/ XP / XPE, Linux, WEPOS, POSReady 2009 |
|
HDD |
1 x 2.5" SATA HDD (standard 160GB) |
|
CF |
1 x Compact Flash slot for CF type I/II storage (on board with IDE interface) |
|
>> I/O Ports |
|
|
Parallel Port |
1 x Parallel port (SPP/EPP/ECP) |
|
USB |
5 x USB 2.0 port (4 on I/O port, 1 on the side of the back cover) |
|
Serial Port |
3 x DB-9 (COM 1/2/3), 1 x RJ45 (COM 4), +5/12V Selectable |
|
Keyboard & Mouse |
2 x PS/2 port |
|
LAN |
1 x Giga Fast Ethernet |
|
Audio |
1 x Line-out / 1 x Mic-in |
|
VGA |
1 x DB-15 VGA Interface |
|
Cash Drawer |
2 x RJ11 port for 12V/24V Cash drawer |
|
|
>> Display |
|
|
LCD |
15" TFT LCD |
|
Max. Resolution |
1024 x 768 |
|
Brightness |
250 cd/m² |
|
Touch Screen |
5-wire Analog resistive |
|
Tilt Angle |
0 ~ 70 degree |
|
|
>> Environment |
|
|
Operation Temperature |
0°~35°C(32°~95°F) |
|
Storage Temperature |
-20°~60°C(-4°~140°F) |
|
Humidity |
20~90% |
|
|
|
|
