Product Data Sheet

Description

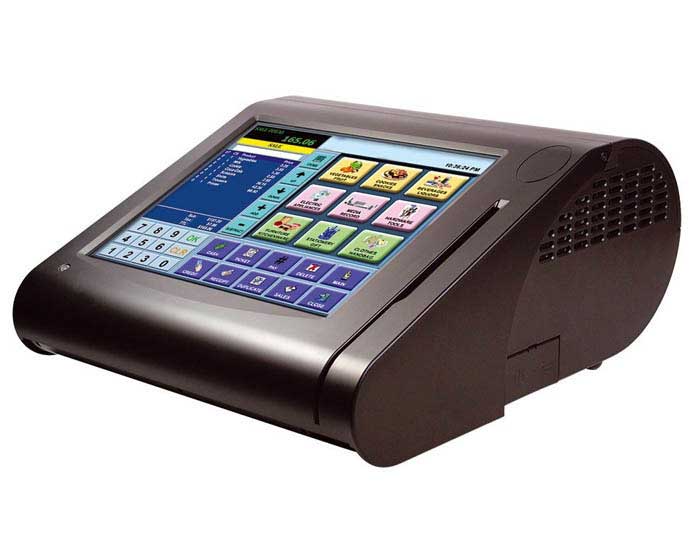

w/ 10.4" ELO Touch Screen
Intel Atom N270 1.6GHz CPU
1GB DDR2 So-Dimm RAM
Slim 80GB HDD
MSR (ID TECH/ integrated credit card reader)
Integrated VFD Display
Build-In Thermal Printer (Seiko Instrument)
POS Ready 2009

  FEATURES

>	Intel® Atom™ N270 CPU
>	10.4" LCD display with touch
>	Flexible design for versatile applications
>	Fanless POS
>	Optional 2”/3” easy loading thermal printer
>	Optional MSR. i-Button & fingerprint module
>	Small footprint
>	Streamline design



  Specifications

>> Systems

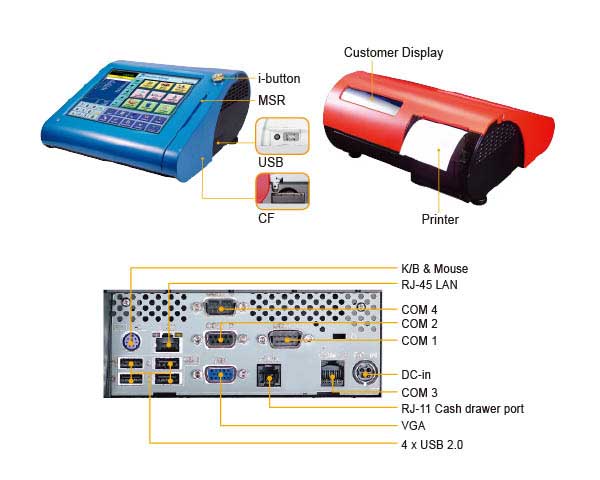

CPU Support Intel® Atom™ N270 CPU Memory 1 x DDR2 SO-DIMM Slot, 512MB DDR2 SO-DIMM (up to 1GB) Core Logic Intel® 945GSE & ICH7M Network 10/100/1000Base-T Fast Ethernet Power Supply 120W Power adapter System Weight 4.5 kg (Fanless) Dimension (W x H x D) 300 x 299 x 135 mm (11.81" x 11.77" x 5.31") O.S. Support Windows 7/ XP/ XPE, WEPOS, POSReady 2009 HDD 1 x 2.5" SATA HDD (standard 160GB) CF Bootable Compact Flash slot for CF type I/II storage >> I/O Ports   USB 5 x USB2.0 Serial Port 3 x DB-9 (COM 1/2/4), 1 x RJ45 (COM 3), +5/12V Selectable (COM1~3) PS/2 1 x PS/2 port (default at Keyboard) LAN 1 x 10/100/1000 Mbps Audio 1 x 2W Speaker VGA 1 x DB-15 VGA Interface Cash Drawer 1 x RJ11 Cash drawer port (12V/24V) Printer 2"/ 3" easy loading thermal printer with Auto cutter >> Display   EMC & Safety CE / FCC / cUL / CB Tilt Angle 24 ~ 30 degree LCD 10.4" TFT LCD Max. Resolution 1024 x 768 / 800 x 600 Brightness 300 / 230 cd/m² Touch Screen 5-wire Analog resistive >> Environment   Operation Temperature 0°~35°C(32°~95°F) Storage Temperature -20°~60°C(-4°~140°F) Humidity 20~90%
