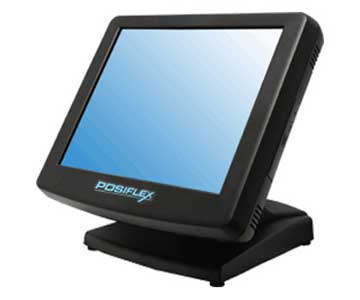

POSIFLEX ALL IN ONE, KS7215, 15", INTEL ATOM DUAL CORE D525 1.8GHZ, 2GB DDR3 SO-DIMM RAM, POS READY, RESISTIVE
 (Click picture to enlarge)
We do our best to ensure accuracy of this product's picture and information. We will ship products based on the product name and model number.
|
|
POSIFLEX ALL IN ONE, KS7215, 15", INTEL ATOM DUAL CORE D525 1.8GHZ, 2GB DDR3 SO-DIMM RAM, POS READY, RESISTIVE
SKU #: 637958
Model #:
KS7215T21B1PR
Product #:
RTPSPF095
List Price: $1,166.00
Our Price:
$981.00
You Save:
$185.00
|
Description
Product Data Sheet
POSIFLEX FAN-FREE TERMINAL
KS7200 SERIES OVERVIEW
Features:
-
Intel® Atom™ D525 1.8 GHz Dual Core w/ 1M L2 Cache
-
Die-Cast Aluminum Alloy Housing for maximum heat diffusion
-
Operates in a wide range of environments and temperatures. 14° F ~ 122° F (-10° C ~ 50° C)
-
-10° C ~ 45° C with Hard Drive Disk
-
-10° C ~ 50° C with Solid State Disk
-
Up to 4GB DDR3 Memory
-
Precisely designed, with strict revision control to maximize the system’s lifecycle
-
Stringent third party tested for superior vibration resistance
-
Liquid / splash resistant
-
Optional Raid 1
Specifications:
|
|
Function |
|
KS7200 |
|
|
Processor |
|
Intel® Atom™ D525 1.8 GHz Dual Core w/ 1M L2 Cache |
|
|
|
|
System Memory |
|
DDR3 800 MHz, SO-DIMM socket x 1 (1GB Default) |
|
|
|
|
Maximum Memory |
|
4GB |
|
|
|
|
Power Supply |
|
12V DC Power adaptor, 60W |
|
|
|
|
Storage Device |
|
2.5” SATA 160GB HDD or SSD Kit (optional) |
|
|
|
|
Supported OS |
|
POSReady / WinXP Pro / Win7 Pro (32 or 64 bit) / Linux |
|
|
Display |
|
|
|
|
LCD |
|
15” TFT LCD, 1024x768 | 17” TFT LCD, 1280x1024 |
|
|
|
|
Touch Function |
|
5-Wire Resistive or Infrared, USB Interface |
|
|
|
|
Brightness Control |
|
Digital Push Button |
|
|
|
|
Tilt Adjustment |
|
15° to 70° |
|
|
Physical Dimensions |
|
|
|
|
Dimensions (WxDxH) |
|
14.76” x 15.20” x 15.55” |
|
|
|
|
Weight (Pounds) |
|
20 lbs |
|
|
Connectivity |
|
|
|
|
LAN Port |
|
10/100/1000 Base-T Ethernet |
|
|
|
|
Serial Port |
|
DB9 x 2, RJ-50 x 2 (5V/12V support on COM1/COM2/COM3/COM4) |
|
|
|
|
Backup Battery Port |
|
1 Port (Battery Optional) |
|
|
|
|
RAID 1 |
|
Optional feature |
|
|
|
|
VGA Port |
|
D-SUB, 15 Pin, with 12V power for Posiflex LCD Monitor |
|
|
|
|
CR Port |
|
1 (Controls 2 drawers) |
|
|
|
|
Standard USB Port(s) |
|
6 |
|
|
