Product Data Sheet

Description:

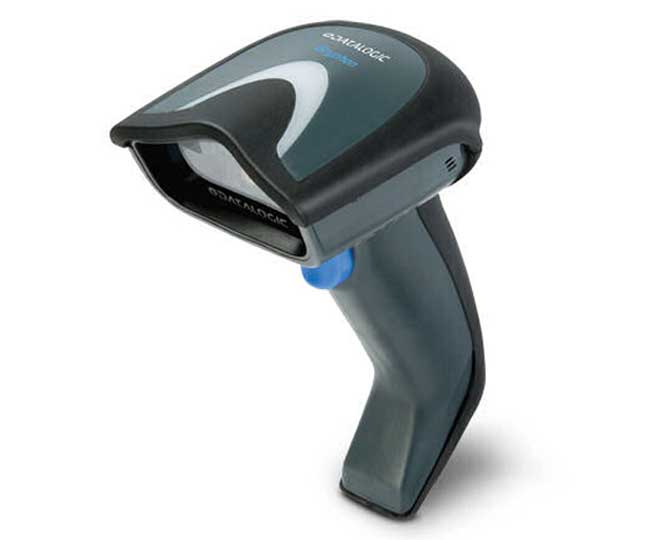

Gryphon GD4430 2D Imager (USB/RS232/KBW/WE Multi-Interface, Corded) - Color: Black

The Gryphon reader series has been developed by Datalogic to provide outstanding reading performance and excellent ergonomic design combined with unmatched durability. The balance of top-of-the-range features and extreme versatility of the Gryphon makes it the ultimate solution for many applications in retail as well as in light industrial environments where low resolution and/or damaged codes need to be read without problems. The optimized optics of the Gryphon series allow reading of the most popular standard codes with superior depths of field from near contact to over 43 cm (long range version). The green spot, (Datalogic patent application) produced by the Gryphon provides good reading feedback directly on the code, useful in under-lighted or noisy environments. Gryphon connectivity is now further expanded thanks to the introduction of new multi-interface models (Wedge, USB, RS232 and Wand), the D130 and D230. Besides these models, the new Gryphon Long Range model D130 LR is also now available.

This new model offers long range reading distances, up to 43 cm (13 mils resolution for EAN and 100percnetUPC codes). In addition, the Gryphon readers also read Reduced Space Symbology (RSS), an emerging Motorolaogy that can be printed on a smaller label which meets emerging market needs for a greater amount of data on a Motorola. The Gryphon M100 and M200 models supported by the DATALOGIC STAR cordless system, the most reliable radio in the market which allows operations anywhere mobility is required at the Desk/POS and around the shop floor, as well as in small warehouses.

Main Features

Manufacturer/Supplier: Datalogic S.p.A
Manufacturer Part Number: GD4430-BK
Manufacturer Website Address: www.datalogic.com
Brand Name: Datalogic
Product Line: Gryphon
Product Series: 4100
Product Model: GD4430
Product Name: Gryphon GD4430 Handheld Bar Code Reader
Marketing Information: The Gryphon | GD4400 imager provides snappy reading performance on all common 1D and 2D codes as well as postal, stacked and composite codes like PDF417. High Density (HD) models are also available for reading smaller, condensed codes. For mobile marketing or ticketing applications, this imager also offers excellent performance when reading bar codes from mobile devices.The Gryphon | GD4400 2D omnidirectional reader eliminates the need for separate equipment with signature capture and document scanning capabilities. Its enhanced optics offer improved motion tolerance and high speed imaging to read fast moving codes.
Product Type: Handheld Bar Code Reader
Connectivity Technology: Wired
Bar Code Dimension: 1D, 2D
Image Sensor: Imager
Host Interface: USB, RS-232, Keyboard Wedge
Color: Black
Height: 7.1"
Width: 2.8"
Depth: 3.9"
Weight (Approximate): 6.88 oz
